Solar Charge Controller

Solar Charge Controller
Key features
Protects the battery (12V) from overcharging
Reduces system maintenance and increases battery lifetime
Auto charged indication
Reliability is high
Monitors the reverse current flow
Street lights which use solar panels to convert sun energy to light
Home lighting system and house-hold applications which drive energy from sun light
Hybrid systems which uses a combination of both solar and grid power

A solar charge controller is basically a voltage or current controller. This device plays a critical role in solar system to protect the battery from overcharging.

The major role of a solar charge controller can be broadly listed into three functions.

  • Plays a critical role in charging the battery with right power.
  • Displays an indication when the battery is full to make informed decisions.
  • Closely monitors the battery voltage and appropriately cuts off the load when the voltage is low.

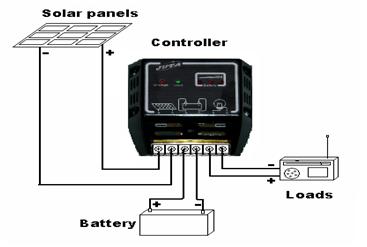

Solar Charge Controller working image

                                                                                       Solar Charge Controller Working Principle

The function of the Solar Charge Controller:

The most essential charge controller basically controls the device voltage and opens the circuit, halting the charging, when the battery voltage ascents to a certain level. More charge controllers utilized a mechanical relay to open or shut the circuit, halting or beginning power heading off to the electric storage devices.

Generally, solar power systems utilize 12V of batteries. Solar panels can convey much more voltage than is obliged to charge the battery. The charge voltage could be kept at the best level while the time needed to completely charge the electric storage devices is lessened. This permits the solar systems to work optimally constantly. By running higher voltage in the wires from the solar panels to the charge controller, power dissipation in the wires is diminished fundamentally.

The solar charge controllers can also control the reverse power flow. The charge controllers can distinguish when no power is originating from the solar panels and open the circuit separating the solar panels from the battery devices and halting the reverse current flow.


Solar Charge Controller (12/24V, 10 Amp)
Solar Charge Controller (12/24 V, 10 Amp)
Send Enquiry
Solar charge Controller (12/24V, 20 Amp)
Solar Charge Controller (12/24V, 20 Amp)
Send Enquiry
Solar charge Controller (12/24V, 30 Amp)
Solar Charge Controller
Send Enquiry
Solar charge Controller (24/36V/48, 50 Amp)
Solar charge Controller (24/36V/48, 50 Amp)
Send Enquiry
